| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | AXQ1110 , AXQ1330 , AXQ1550 |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Aluminum , Aluminum Clad Steel , Galvanized Steel | Dia. Range: | 8mm-17mm |
|---|---|---|---|
| Span: | 100M-800M | Color Label: | Green , Black , Red , Blue |
| Holding Strength: | 20Kn-100Kn | Length: | 800MM-3000MM |
| High Light: | 3000MM ADSS Suspension Clamp,Fiber Cable ADSS Suspension Clamp,3000MM aluminum alloy suspension clamp |
||

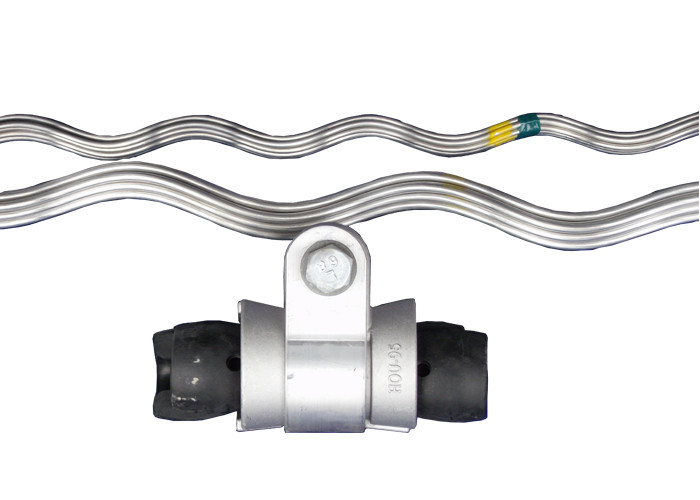

Aluminum Alloy rods Suspension set , ADSS , OPGW Fiber Calbe Fittting
4.1 Specification:The falling load not less than 30KN.
| Production Name | Model |
Available Dia. of Cable(mm) |
Length of Rods(mm) | Weight(kg) | Universal Scheme | Available Span(m) | ||
|
Weight of AGS Clamp (kg) |
Clevis | |||||||

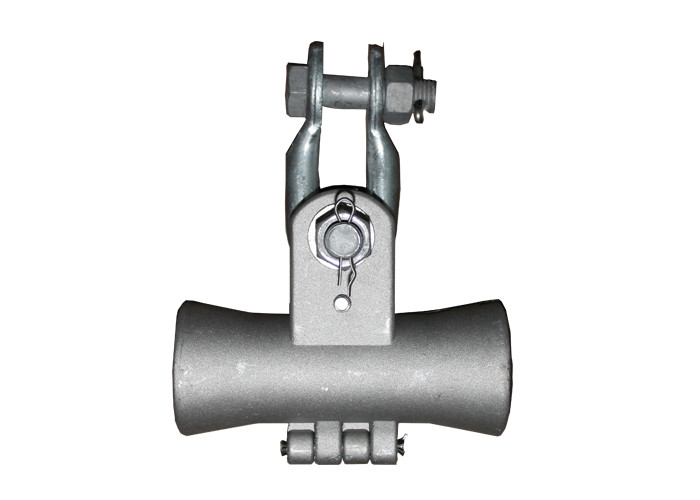

| Tangent Clamp For ADSS | AXQ 1110 | 9.0-11.1 | 0 | 0 | XGT-02-111 | 1.08 | GHX-04 | 100 |
| AXQ 1330 | 11.2-13.3 | 0 | 0 | XGT-02-133 | 1.04 | GHX-04 | ||
| AXQ 1550 | 13.4-15.5 | 0 | 0 | XGT-02-155 | 1.00 | GHX-04 | ||
| Monolayer Preformed Suspension Set for ADSS | AXD 1010 | 9.7-10.1 | 800 | 0.3 | XGT-02-197 | 0.98 | GHX-04 | 200 |
| AXD 1060 | 10.2-10.6 | 800 | 0.3 | XGT-02-197 | 0.98 | GHX-04 | ||
| AXD 1110 | 10.7-11.1 | 800 | 0.3 | XGT-02-197 | 0.98 | GHX-04 | ||
| AXD 1160 | 11.2-11.6 | 800 | 0.33 | XGT-02-219 | 0.94 | GHX-04 | ||
| AXD 1170 | 11.7-11.7 | 800 | 0.33 | XGT-02-219 | 0.94 | GHX-04 | ||
| AXD 1200 | 11.8-12.0 | 860 | 0.36 | XGT-02-219 | 0.94 | GHX-04 | ||
| AXD 1270 | 12.1-12.7 | 860 | 0.36 | XGT-02-219 | 0.94 | GHX-04 | ||
| AXD 1290 | 12.8-12.9 | 900 | 0.41 | XGT-02-219 | 0.94 | GHX-04 | ||
| AXD 1360 | 13.0-13.6 | 900 | 0.41 | XGT-02-219 | 0.94 | GHX-04 | ||
| AXD 1410 | 13.7-14.1 | 900 | 0.41 | XGT-02-241 | 0.90 | GHX-04 | ||
| AXD 1430 | 14.2-14.3 | 1000 | 0.5 | XGT-02-241 | 0.90 | GHX-04 | ||
| AXD 1450 | 14.4-14.5 | 1000 | 0.5 | XGT-02-241 | 0.90 | GHX-04 | ||
| AXD 1510 | 14.6-15.1 | 1000 | 0.5 | XGT-02-241 | 0.90 | GHX-04 | ||
