AXYB Type ADSS Suspension Clamp 10KN With Ring Mid Span

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: AXYB Series
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Spiral Span: 127mm+-4mm Strength: 5KN-10KN
Length: 15mm+-5mm Wire Dia: 2.3mm
Function: Easy Install Usage: Banding
High Light:

ADSS Suspension Clamp 10KN


AXYB Type ADSS Suspension Clamp


Mid Span suspension clamp for ADSS cable

Product Description

AXYB Type Simple Suspension Set With Ring Mid Span


The Structual Reinforcing Rods protect the ADSS branch Cablefrom excessive bending and allow side-loads without fiber attenuation. the midspan conector is installed over the rods and provide the loop attachement point.

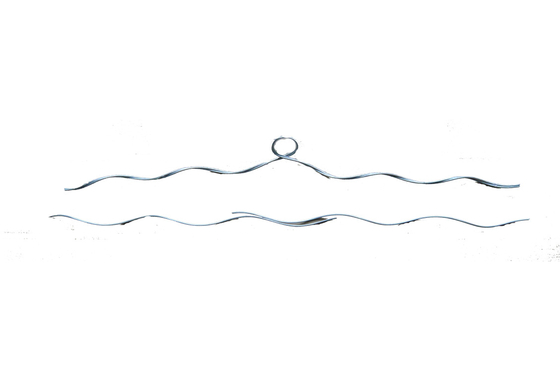

AXYB Type ADSS Suspension Clamp 10KN With Ring Mid Span 0


Ordering Instruction Nomenclature
Connect Up to two cable drops Midspan Connector
supports drop calbe dead-ends Structual Reinforcing Rods
Maximum perpendicular load 500# Thimble


AXYB Type of Suspension set is used to connect all dielectric self-supporting Cables(ADSS)to straight line towers.

It made of Aluminum alloy or hot dip galvanized steel as requested

Dynamic stress of wind vibration can be suppressed by the product to improve optical vibration resistance .

The product may also ensure that the bending of cable does not exceed the allowable value, so as to prevent the optical fiver from generating attachement loss.

Product selection is determined the diameter of the fiber optic cable, span and its rated tensile strength

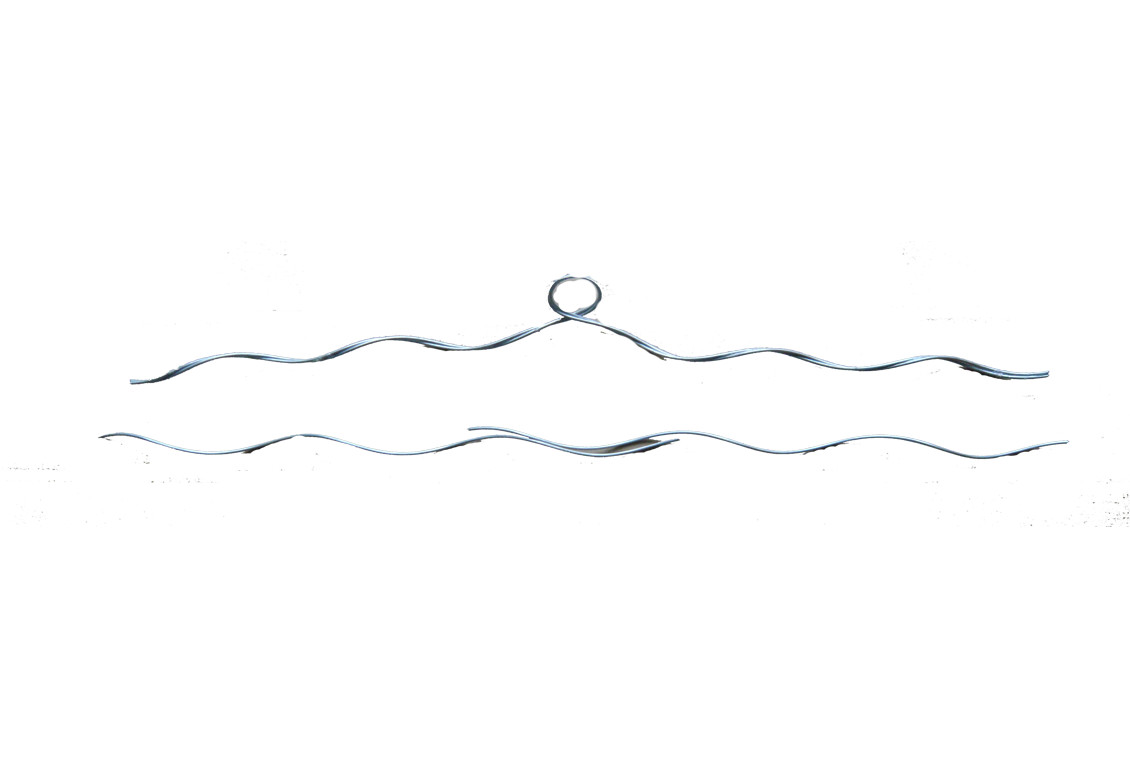

AXYB Type ADSS Suspension Clamp 10KN With Ring Mid Span 1
