| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | PS Series |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Carbon Steel | Color: | Silver |
|---|---|---|---|
| Feature: | J Type | Max Span: | 150M |
| Breaking Load: | 4kn-10kn | L: | 120MM |
| High Light: | J type ADSS Suspension Clamp,Round Cable ADSS Suspension Clamp,ADSS fiber optic suspension clamp |
||

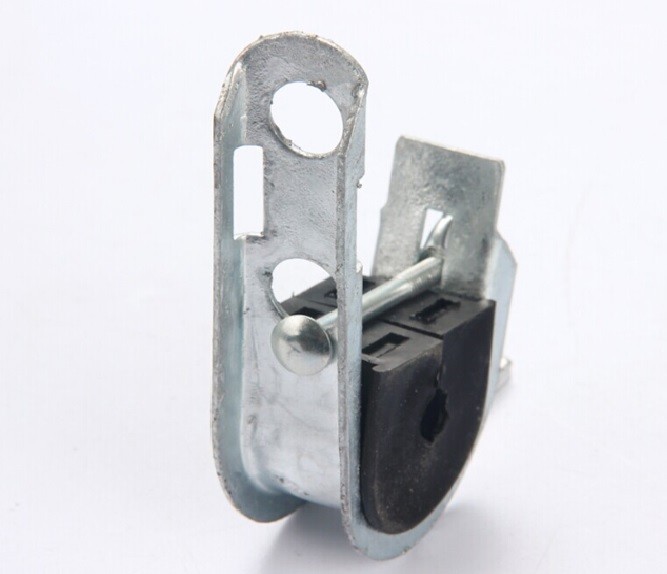

ADSS Or Round Cable Suspension Set
hook suspension clamp is used to link signs and cable installation on the post, hot dipped galvanized and can be used outside for more than 10 years wihtout any rusty. There will be no sharp edges, and corners rounded. All items will be clean rust free, smooth and uniform throughout and will also be free from burrs.
Features
Up to 25° deviation angle
J hook suspension clamp suspended with stainless steel banding or hose clamp.The suspension clamp can be installed on wood poles,round concrete poles and polygonal metallic poles using one or two 20mm pole stainless steel banding and two buckles.J hook suspension clamp suspended with a hook boltThe suspension clamp can be installed on a 14mm or 16mm hook bolt on drilled wood poles.J hook suspension clamp suspended with a bolThe suspenson clamp can be secured with a 14mm or 16mm bolt on drilled wood poles.
| Models | PS615ADSS(*) | PS1520ADSS(*) | PS2227ADSS(*) |
| Max spans(m) | 150 | 150 | 150 |
| Cable diameter(mm) | 6~15 | 15 ~ 20 | 22 ~ 27 |
| Min tensile (daN) | 300 | 300 | 300 |
| L (mm) | 120 | 120 | 120 |
