8KN ADSS Anchor Clamp , PA800 ADSS Cable Tension Clamp

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: PA-800
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Cable Size: 7-12mm Strength: 8KN
Weight: 0.38kgs Color: Steel And Black
Bail Length: 350mm Package: 40*30*20 Cm, 30 PCS/CTN
High Light:

ADSS cable tension clamp PA800


PA800 8KN ADSS anchor clamp


PA800 ADSS anchor clamp

Product Description

Adss Anchoring Clamp PA800 ADSS Tension Clamp
Product information:


adss anchoring clamp PA-800 other called adss tension clamp is designed to anchor and tension adss cable or abc cable in intermediate routes during aerial ftth network or low voltage line constructions.

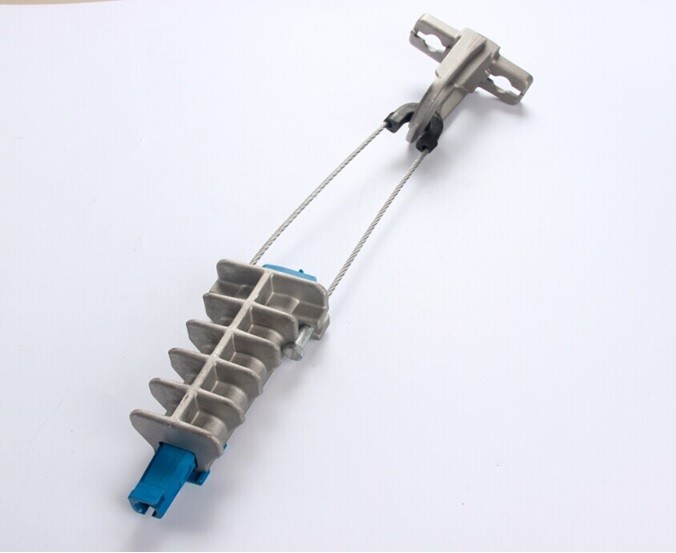

8KN ADSS Anchor Clamp , PA800 ADSS Cable Tension Clamp 0

Key Features:


1. Applied for fiber optic cable lines and ABC electrical power cable lines application

2. Extended self adjusting wedge, no damage to cable sheath

3. Aluminum alloy, UV proof plastic and stainless steel material,durable

4. With high mechanical strength up to 8 kN

5. Good quality with competitive price

6. Perfect environment stability



Technical specification:


Items Parameters
Product code PA-800
Product name Aluminum adss anchor clamp pa-800
Adss cable size, mm 7-11
Material of body Aluminum alloy and UV resistant nylon PA-66
Material of wire bail Stainless steel
Wire bail length, mm 350
MBL, kN 8
Product color Steel and black
Weight, kg 0.38 kg
Package 40*30*20 cm, 30 PCS/CTN


strain wedge clamp pa-800 is consist of outer shell, wedge and wire bail, outer shell is made of high quality aluminum alloy processed hot dip coasting which are strong enough during application. Clamp wedge and wire bail are made of UV proof plastic nylon and stainless steel which guarantee long service life in various weather conditions.


The installation of this anchoring clamp is very easy and convenient, it do not need any additional tools and open wire bail allow it can be applied with pole hook or bracket. We also provide related ftth accessories for aerial deployment, which you could find in our products range. We care about the practicality and quality of each product, we have our own laboratory to do testing during production. Welcome to send us inquiry for this aluminum anchor clamp price.
