| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | HCXF SERIES |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Feature: | Simple Structure | Housing: | Aluminium Alloy |
|---|---|---|---|
| RTS: | Greater Than 20KN | Elevation Angle: | Approximately 25-50. |
| Function: | Improve Cable Anti-Vibration Ability | Shackle Material: | Forged Steel |
| High Light: | Telecom ADSS Suspension Clamp,OPGW ADSS Suspension Clamp,20KN ADSS tension clamp |
||

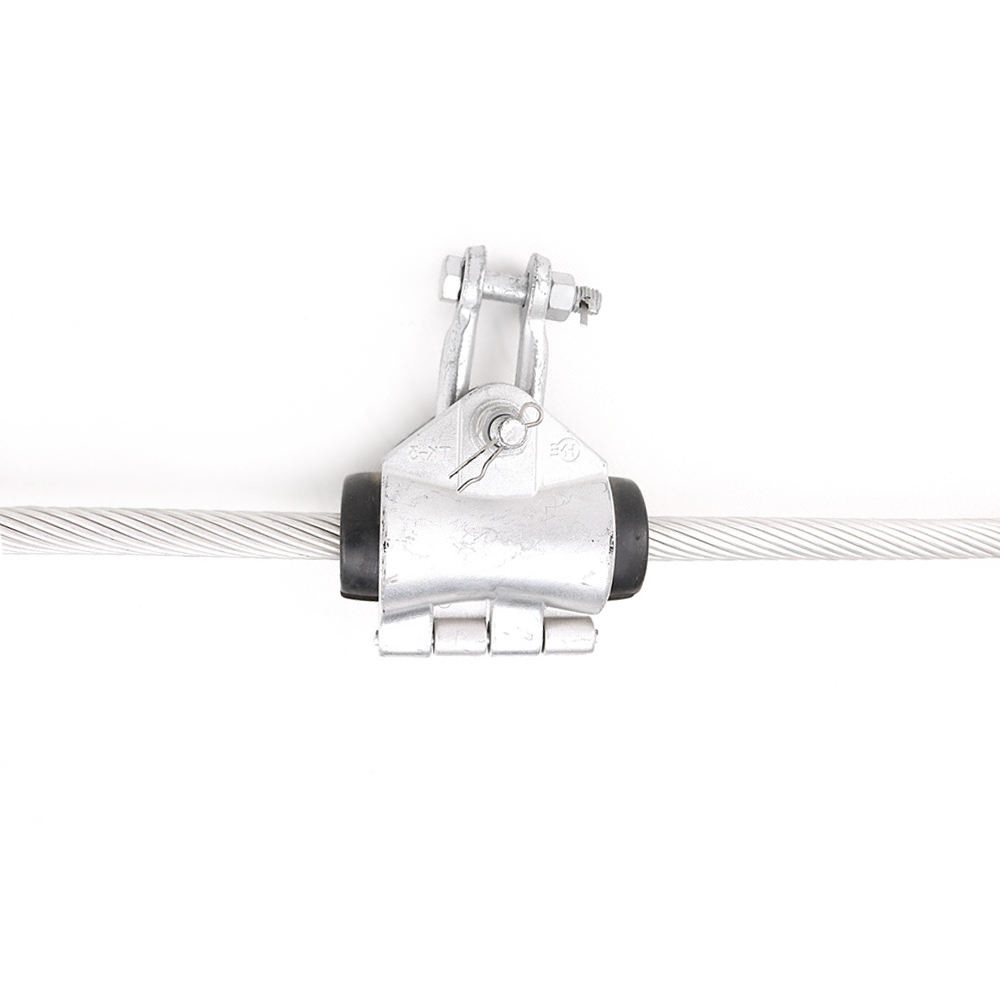

The Preformed Suspension Clamp is the connecting hardware of ADSS cable which hanging in transmission line pole (tower).
It can reduce static stress at the support point, improve cable anti-vibration ability, and cushioned against the dynamic stress of Aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don’t produce extra loss in the cables.
The Preformed Suspension Clamp is the connecting hardware of ADSS cable which hanging in transmission line pole (tower). It can reduce static stress at the support point, improve cable ant-vibration ability, and cushioned against the dynamic stress of Aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don’t produce extra loss in the cables.
Short Span(50-200m) suspension clamp:
|
1- Stainless steel band(1.2m) 2- Stainless steel base: 1pcs 3- Rubber insert : synthetic rubber 4- Housing: aluminum alloy 5- Bolt, nut, washer, spring washer: 1set
|
1- Anchor shackle: forged steel 2- Housing: aluminum alloy 3- Rubber insert: synthetic rubber 4- Bolt, nut, cotter pin |
Features:
Simple structures, easy installation, and lower cost.
Applications:
Poles/towers with span of less than 100m, and line angle of less than 15°
Technical Data:
RTS: greater than 20kN
Recommended span length: 100m
| Product Model | Cable Diameter (mm) | Armor Rods (mm) |
| HCXF 100-10 | 9-10 | 0 |
| HCXF 100-11 | 10-11 | 0 |
| HCXF 100-12 | 11-12 | 0 |
| HCXF 100-13 | 12-13 | 0 |
| HCXF 100-14 | 13-14 | 0 |

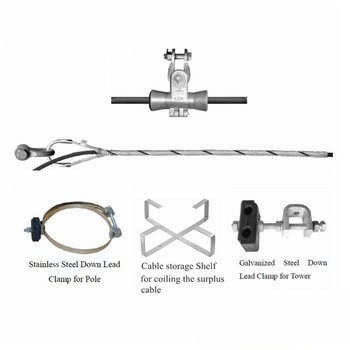

Long span ADSS/OPGW suspenion clamp
|
Single preformed armor rod The single preformed armor rod is used to ADSS/OPGW cable on the line support and connect immediate support for support of angle less than 25.
|
Double preformed armor rod The double preformed armor rod for ADSS is used to ADSS cable on the support of angle or elevation angle approximately 25-60. The double preformed armor rod for OPGW is mainly used to hang OPGW cable on the transmission line support and connect immediate support or elevation angle approximately 25-50. |
Application:
for ADSS/OPGW on pole or tower
