| Material: | Aluminum Alloy , Rubber | Dia. Range: | 8mm-30mm |
|---|---|---|---|
| Span: | 20m-200m | Holding Strength: | 5Kn-50Kn |
| Usage: | Hanging Fiber Cable | Function: | Reduce Static Stress |
| High Light: | 200m ADSS Suspension Clamp,50KN ADSS Suspension Clamp,Rubber Aluminum Alloy ADSS cable clamp |
||

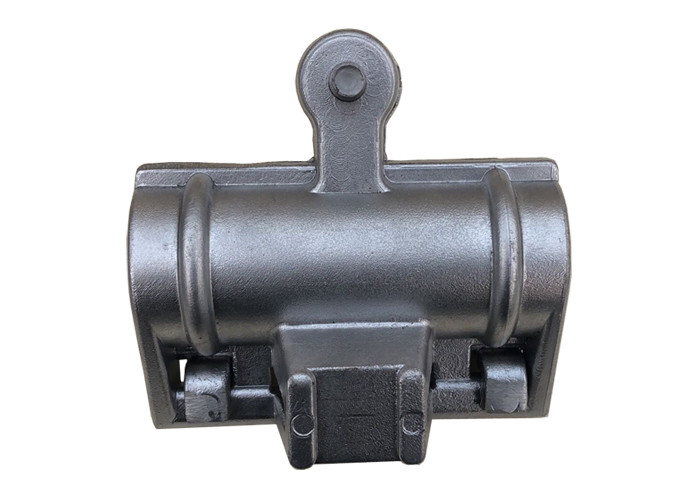

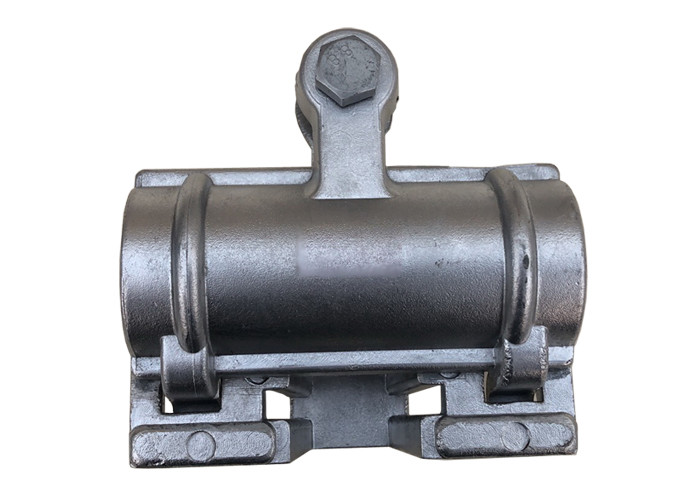

Rubber Aluminum Alloy Suspension Thimble Fitting B , Aluminum Keeper
A soft pliable dielectric material that gently grips the ADSS cable – supplied either with or without grit on the inner diameter bore. Gritted inserts are applied over optional Structural Reinforcing Rods for medium span applications.
The gritted inserts have a conductive aluminum strip
| Capability | Nomenclature |
| 1. For short spans without Reinforcing Rods | 2. Cushion Inserts (With or Without Grit) |
| <600' (183 m) maximum recommended span lengths. | 3. Captured Bolt and Washer (Captured with Grommet) |
| 2. For Intermediate spans with Rods | 4. Lock Nut |
| <1200' (366 m) maximum recommended span lengths. | 5. Anchor Shackle with Eye-nut (Optional not shown) |
| For additional cable jacket protection, longer spans and higher longitudinal holdling requirements, the dual rod layer | 6. Structural Reinforcing Rods (optional, not shown) |
| Dielectric Suspension (found later in this section) is recommended. |
The Suspension Thimble Fitting B is the connecting hardware of ADSS cable which hanging in transmission line pole . It can reduce static stress at the support point, improve cable anti-vibration ability, and cushioned against the dynamic stress of Aeolian vibration. as well as ensure that the cable bending will not exceed ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don’t produce extra loss in the cables.it is generally used for 300M-400M span length ADSS installation, which clamp break strength is less than 30KN, gripstrength is less than 15% -20% RTS of the cable.
In order to avoid scratching, gouging or nicking of the plastic
jacket during installation, unbalanced loading, or cable motion, the ends of the Thimble B are factory formed to flare away from the cable surface
Galvanized steel bolt and washer captured with an elastomer
The galvanized steel Lock Nut has a stiff wire locking mechanism designed to engage with the thread of the mating bolt.
Structural Reinforcing.
