| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | HC5 Series |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Weight: | 12KGS-20KGS | Strength: | 5-13KN |
|---|---|---|---|
| Cable Dia: | 5mm-20mm | Installation: | With SS Strap |
| Rubber: | UV Resistance | Connection: | Banding With Strap |
| High Light: | 13KN ADSS cable suspension clamps,13KN SGS ADSS cable suspension clamp,13KN ADSS fiber suspension clamp |
||

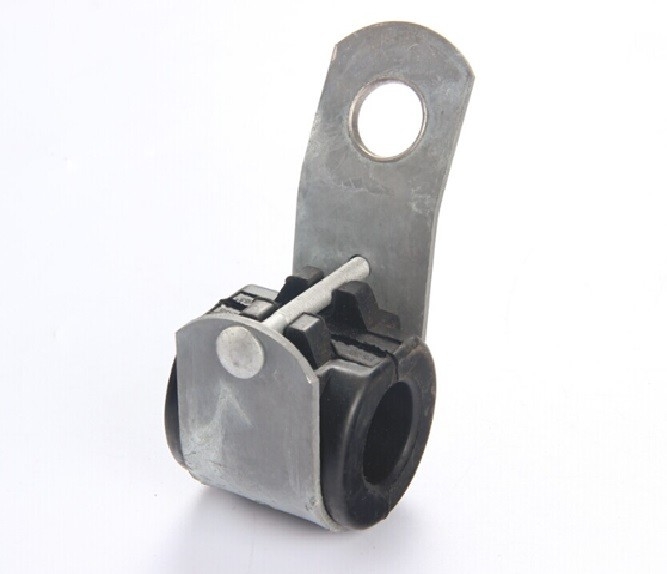

Suspension Clamp with Neoprene Insert for ADSS cables
Neoprene Inserted Suspension clamp named J hook suspension clamp / Suspension clamp are designed to provide a suspension for 5mm to 20mm aerial ADSS cables at intermediate on poles. cable routes with angle < 20° on access networks (spans up to 100m).
This hook consist with J hook,screw and sleeve.
Material of suspension clamp
J hook made of galvanized steel
The sleeve made of neoprene
The screw made of protected steel
| Product Code | Cable size (mm) |
Strength (kN) | Matreials |
| HC5-8 | 5-8 | 4 | Galvanized stell, UV resistant plastic |
| HC8-12 | 8-12 | 4 | |
| HC10-15 | 10-15 | 4 | |
| HC15-20 | 15-20 | 4 |
Feature of suspension clamp with J hook
1.Two sizes to cover the full range of ADSS cables from 5 to 20mm.
2.The shape of the J hook suspension clamp allows a running out of the cable directly in the hook.
3.The suspension clamps can be directly secured to the poles using bolts or bandings.
4.Hook clamps also can be installed on hook bolts to provide some flexible suspension point and give extra protection to the cable against wind induced vibrations.
J hook suspension clamp suspended with stainless steel banding or hose clamp.
The suspension clamp can be installed on wood poles,round concrete poles and polygonal metallic poles using one or two 20mm pole stainless steel banding and two buckleJ hook suspension clamp suspended with a hook bolt
The suspension clamp can be installed on a 14mm or 16mm hook bolt on drilled wood poles.
J hook suspension clamp suspended with a bolt
The suspenson clamp can be secured with a 14mm or 16mm bolt on drilled wood poles.
