| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2018 |
| Model Number: | AXY 0960 300 , AXYD 1410 300 , AXYD 1450 400 |
| Minimum Order Quantity: | 100 |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Material: | Rubber , Aluminum , Aluminum Clad Steel , Galvanized Steel | Dia. Range: | 8mm-17mm |
|---|---|---|---|
| Span: | 100M-800M | Color Label: | Green , Black , Red , Blue |
| Holding Strength: | 20Kn-100Kn | Length: | 800MM-3000MM |
| High Light: | 800M ADSS Suspension Clamp,Aluminum Alloy ADSS Suspension Clamp,ADSS aluminum suspension clamp |
||

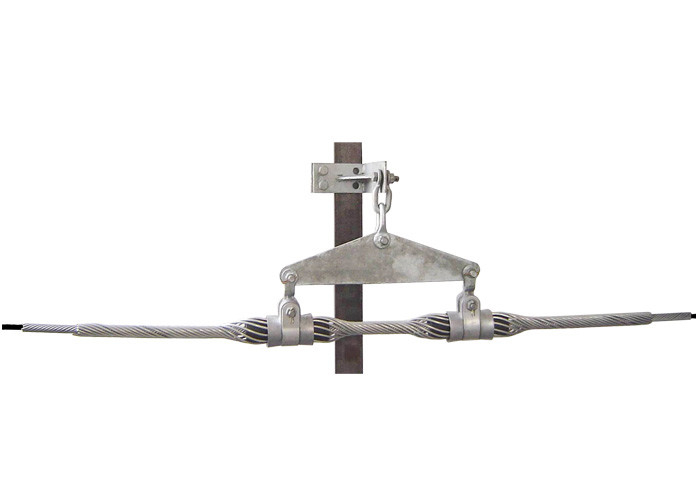

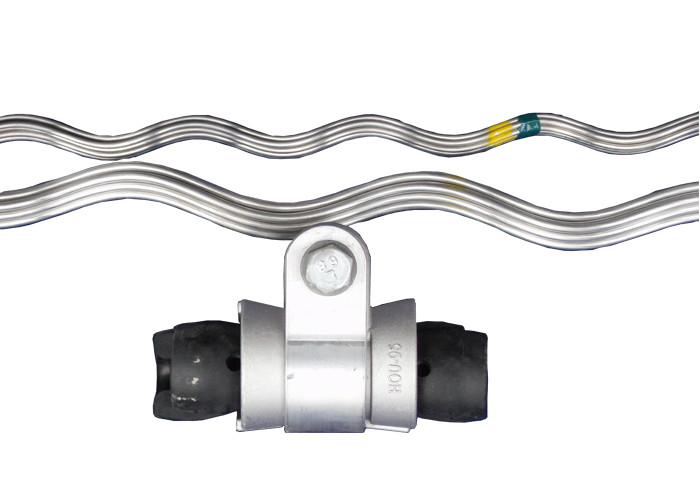

Aluminum Alloy rods Suspension set , ADSS , OPGW Fiber Calbe Fittting
Specification:The falling load will be not less than 70KN, and the grip strength of the clamp is bigger than 10%-20% of the rated tensile strength
.
| Model |
Available Dia. of Cable(mm) |
Length of Outer Rods (mm) |
Length of endothecium’s (mm) |
Weight(kg) | Universal Scheme | Available Span(m) |
||
| AGS Clamp | Link Fittings | |||||||
| AXY 0960 300 | 9.0-9.6 | 1060 | 1500 | 1.45 |
Referrence Table 16.3 |
ZH-7 | U-7 | 200/300 |
| AXY 1010 300 | 9.7-10.1 | 1060 | 1500 | 1.45 | ZH-7 | U-7 | 200/300 | |
| AXY 1060 300 | 10.2-10.6 | 1060 | 1500 | 1.51 | ZH-7 | U-7 | 200/300 | |
| AXY 1110 300 | 10.7-11.1 | 1060 | 1500 | 1.51 | ZH-7 | U-7 | 200/300 | |
| AXY 1160 300 | 11.2-11.6 | 1080 | 1540 | 1.63 | ZH-7 | U-7 | 200/300 | |
| AXY 1170 300 | 11.7-11.7 | 1080 | 1540 | 1.71 | ZH-7 | U-7 | 200/300 | |
| AXY 1200 300 | 11.8-12.0 | 1160 | 1680 | 1.86 | ZH-7 | U-7 | 200/300 | |
| AXY 1270 300 | 12.1-12.7 | 1160 | 1680 | 1.86 | ZH-7 | U-7 | 200/300 | |
| AXY 1290 300 | 12.8-12.9 | 1160 | 1680 | 2.04 | ZH-7 | U-7 | 200/300 | |
| AXY 1360 300 | 13.0-13.6 | 1250 | 1800 | 2.21 | ZH-7 | U-7 | 200/300 | |
| AXY 1410 300 | 13.7-14.1 | 1250 | 1800 | 2.21 | ZH-7 | U-7 | 200/300 | |
| AXY 1430 300 | 14.2-14.3 | 1250 | 1800 | 2.21 | ZH-7 | U-7 | 200/300 | |
| AXY 1450 300 | 14.4-14.5 | 1250 | 1800 | 2.32 | ZH-7 | U-7 | 200/300 | |
| AXY 1510 300 | 14.6-15.1 | 1250 | 1800 | 2.40 | ZH-7 | U-7 | 200/300 | |
|
Model |
Available Dia. of Cable(mm) |
Length of Outer Rods (mm) |
Length of Structural Reinforcing Rods (mm) |
Weight(kg) | Universal Scheme | Available Span(m) | ||
| AGS Clamp | Link Fittings | |||||||
| AXY 0960 400 | 9.0-9.6 | 1100 | 1600 | 1.53 |
Referrence Table 16.3 |
ZH-7 | U-7 | 300/400 |
| AXY 1010 400 | 9.7-10.1 | 1100 | 1600 | 1.59 | ZH-7 | U-7 | 300/400 | |
| AXY 1060 400 | 10.2-10.6 | 1100 | 1600 | 1.69 | ZH-7 | U-7 | 300/400 | |
| AXY 1110 400 | 10.7-11.1 | 1100 | 1600 | 1.69 | ZH-7 | U-7 | 300/400 | |
| AXY 1160 400 | 11.2-11.6 | 1100 | 1600 | 1.76 | ZH-7 | U-7 | 300/400 | |
| AXY 1170 400 | 11.7-11.7 | 1100 | 1600 | 1.76 | ZH-7 | U-7 | 300/400 | |
| AXY 1200 400 | 11.8-12.0 | 1200 | 1720 | 1.9 | ZH-7 | U-7 | 300/400 | |
| AXY 1270 400 | 12.1-12.7 | 1200 | 1720 | 1.91 | ZH-7 | U-7 | 300/400 | |
| AXY 1290 400 | 12.8-12.9 | 1200 | 1720 | 2.08 | ZH-7 | U-7 | 300/400 | |
| AXY 1360 400 | 13.0-13.6 | 1300 | 1840 | 2.25 | ZH-7 | U-7 | 300/400 | |
| AXY 1410 400 | 13.7-14.1 | 1300 | 1840 | 2.25 | ZH-7 | U-7 | 300/400 | |
| AXY 1430 400 | 14.2-14.3 | 1300 | 1840 | 2.44 | ZH-7 | U-7 | 300/400 | |
| AXY 1450 400 | 14.4-14.5 | 1300 | 1840 | 2.44 | ZH-7 | U-7 | 300/400 | |
| AXY 1510 400 | 14.6-15.1 | 1300 | 1840 | 2.44 | ZH-7 | U-7 | 300/400 | |
| AXY 1270 500 | 12.1-12.7 | 1260 | 1760 | 2.0 | ZH-7 | U-7 | 400/500 | |
| AXY 1290 500 | 12.8-12.9 | 1260 | 1760 | 2.22 | ZH-7 | U-7 | 400/500 | |
| AXY 1360 500 | 13.0-13.6 | 1300 | 1860 | 2.32 | ZH-7 | U-7 | 400/500 | |
| AXY 1410 500 | 13.7-14.1 | 1300 | 1860 | 2.32 | ZH-7 | U-7 | 400/500 | |
| AXY 1430 500 | 14.2-14.3 | 1300 | 1860 | 2.32 | ZH-7 | U-7 | 400/500 | |
| AXY 1450 500 | 14.4-14.5 | 1360 | 1940 | 2.54 | ZH-7 | U-7 | 400/500 | |
| AXY 1510 500 | 14.6-15.1 | 1360 | 1940 | 2.64 | ZH-7 | U-7 | 400/500 | |
| AXY 1580 500 | 15.2-15.8 | 1360 | 1940 | 2.64 | ZH-7 | U-7 | 400/500 | |
| AXY 1600 500 | 15.9-16.0 | 1420 | 2040 | 2.87 | ZH-7 | U-7 | 400/500 | |
| AXY 1690 500 | 16.1-16.9 | 1420 | 2040 | 2.87 | ZH-7 | U-7 | 400/500 | |
| AXY 1270 600 | 12.1-12.7 | 1300 | 1800 | 2.03 | ZH-7 | U-7 | 500/600 | |
| AXY 1290 600 | 12.8-12.9 | 1300 | 1800 | 2.23 | ZH-7 | U-7 | 500/600 | |
| AXY 1360 600 | 13.0-13.6 | 1360 | 1920 | 2.34 | ZH-7 | U-7 | 500/600 | |
| AXY 1410 600 | 13.7-14.1 | 1360 | 1920 | 2.35 | ZH-7 | U-7 | 500/600 | |
| AXY 1430 600 | 14.2-14.3 | 1360 | 1920 | 2.55 | ZH-7 | U-7 | 500/600 | |
| AXY 1450 600 | 14.4-14.5 | 1400 | 2000 | 2.63 | ZH-7 | U-7 | 500/600 | |
| AXY 1510 600 | 14.6-15.1 | 1400 | 2000 | 2.63 | ZH-7 | U-7 | 500/600 | |
| AXY 1580 600 | 15.2-15.8 | 1400 | 2000 | 2.63 | ZH-7 | U-7 | 500/600 | |
| AXY 1600 600 | 15.9-16.0 | 1520 | 2120 | 2.92 | ZH-7 | U-7 | 500/600 | |
