| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HC , OEM |
| Certification: | CE , SGS , ISO2001 |
| Model Number: | PA-09A5 |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Cartons , Wooden Case , Pallets |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Sets Per day |
| Height: | 2.75Inch | Strength Rating - Ultimate Body: | 25000lbs |
|---|---|---|---|
| Standard: | Standard Voltage Suspension Clamps | Angle - Take-Off Maximum: | 30 ° |
| Connect: | Desk Top | Output Type: | DC |
| High Light: | 2.75In aluminum alloy suspension clamp,25000lbs aluminum alloy suspension clamp,ADSS fiber cable suspension clamp |
||
wedge-shaped insulation strain clamp is suitable for 10kV and below distribution lines. Fix the overhead insulated aluminum conductor or bare aluminum conductor on the insulator of the corner or terminal strain rod, so as to fix or tighten the overhead conductor. The insulation cover is used together with the strain clamp for insulation protection.
| Bolt Installation Torque (Recommended) | 480 in-lbs |
| EU RoHS Indicator | No |
| Fitting Type | Clevis |
| Material - Clamp | Aluminum |
| Material - Hardware | Galvanized Steel |
| Material - Pin | Stainless Steel |
| Material - Pin (Cotter) | Stainless Steel |
| Material - Socket and Clevis | Galvanized Ductile Iron |

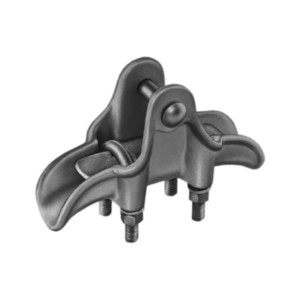

| Product Category | Suspension Clamp |
| Strength Rating - Ultimate Body | 25000 lb |
| Type | Standard Voltage Suspension Clamps |
| U-Bolts | 1/2 in |
| Angle - Take-Off Maximum | 30 ° |
| Clamping - Maximum | 1.04 in |
| Clamping - Minimum | 0.5 in |
| Clevis Opening | 1.15625 in |
| Diameter - Clevis Pin | 0.625 in |
| Height | 2.75 in |
| Length | 8.125 in |
| Weight | 4.2 lb |
| Voltage Application | Standard |
| Clamping Range | 0.5- 1.04 |
| Conductor Compatibility | ACSR-Swan-4-6/1;ACSR-Swanate-4-7/1;ACSR-Sparrow-2-6/1;ACSR-Sparate-2-7/1;ACSR-Robin-1-6/1;ACSR-Raven-1/0-6/1;ACSR-Quail-2/0-6/1;ACSR-Pigeon-3/0-6/1;ACSR-Penguin-4/0-6/1;ACSR-Waxwing-266.8-18/1;ACSR-Partridge-266.8-26/7;ACSR-Ostrich-300-26/7;ACSR-Merlin-336.4-18/1;ACSR-Linnet-336.4-26/7;ACSR-Oriole-336.4-30/7;ACSR-Chickadee-397.5-18/1;ACSR-Brant-397.5-24/7;ACSR-Ibis-397.5-26/7;ACSR-Lark-397.5-30/7;ACSR-Pelican-477-18/1;ACSR-Flicker-477-24/7;ACSR-Hawk-477-26/7;ACSR-Hen-477-30/7;ACSR-Osprey-556.5-18/1;ACSR-Parakeet-556.5-24/7;ACSR-Dove-556.5-26/7;ACSR-Eagle-556.5-30/7;ACSR-Peacock-605-24/7;ACSR-Squab-605-26/7;ACSR-Teal-605-30/19;ACSR-Kingbird-636-18/1;ACSR-Swift-636-36/1;ACSR-Rook-636-24/7;ACSR-Grosbeak-636-26/7;ACSR-Egret-636-30/19;ACSR-Flamingo-666.6-24/7;ACSR-Gannet-666.6-26/7;ACSR-Stilt-715.5-24/7;ACSR-Coot-795-36/1;ACSR-Brahma-203.2-16/19;AAC-Iris-2-7;AAC-Pansy-1-7;AAC-Poppy-1/0-7;AAC-Aster-2/0-7;AAC-Phlox-3/0-7;AAC-Oxlip-4/0-7;AAC-Valerian-250-19;AAC-Laurel-266.8-19;AAC-Daffodil-350-19;AAC-Canna-397.5-19;AAC-Cosmos-477-19;AAC-Syringa-477-37;AAC-Zinnia-500-19;AAC-Hyacinth-500-37;AAC-Dahlia-556.5-19;AAC-Mistletoe-556.5-37;AAC-Meadowsweet-600-37;AAC-Orchid-636-37;AAC-Flag-700-61;AAC-Violet-715.5-37;AAC-Nasturtium-715.5-61;AAC-Cattail-750-61;AAC-Arbutus-795-37;AAC-Lilac-795-61;AAAC 6201 Alloy-Alton-48.69-6/18;AAAC 6201 Alloy-Ames-77.47-6/18;AAAC 6201 Alloy-Azusa-123.3-6/18;AAAC 6201 Alloy-Anaheim-155.4-6/18;AAAC 6201 Alloy-Amherst-195.7-6/18;AAAC 6201 Alloy-Alliance-246.9-6/18;ACAR-653.1-12/7;ACAR-739.8-18/19 |
