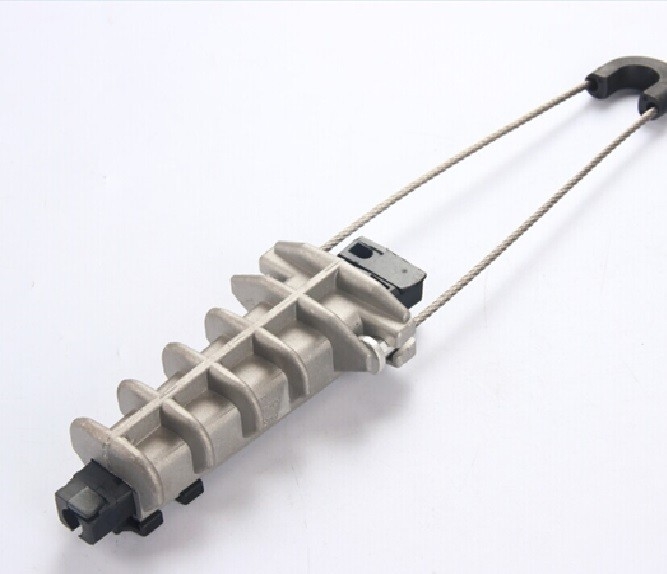

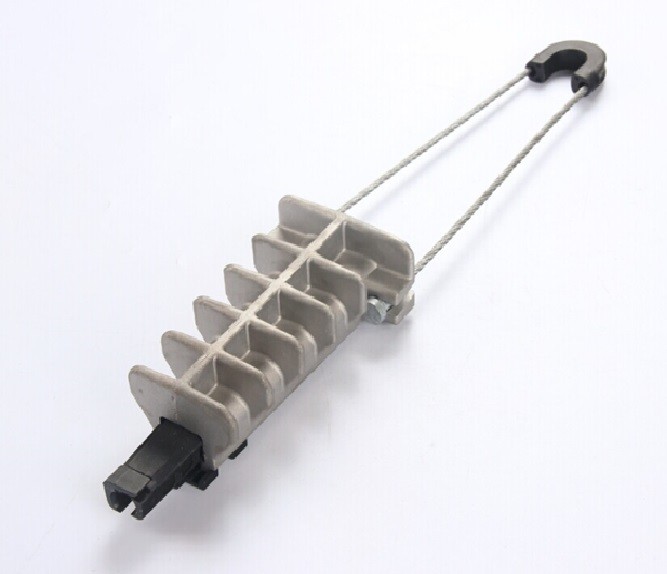

Aluminium Alloy Anchoring Clamp For Aerial Bundled Cables

Basic Information
Place of Origin: CHINA
Brand Name: HC , OEM
Certification: CE , SGS , ISO2001
Model Number: PA-1000AL ,PA-1500AL
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Cartons , Wooden Case , Pallets
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets Per day
Detail Information
Cable Dia Range: -25mm-95mm Core: 1
Weight: 23kgs Conductor Square: 50-70mm2
MBL: 15kn Operating Temperature(℃): -10 ~ +60
High Light:

Aluminium Alloy cable anchor clamp


15kn anchoring clamp for aerial bundled cables


SGS anchoring clamp for aerial bundled cables

Product Description

Aluminium  Alloy Anchor Clamp

Description of Aluminum anchor clamp

The aluminum anchor clamp for ab cable service line.The PA 1000,PA 1500,PA 2000 anchor clamp with hook is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall.The aluminum tension clamp is composed of a body, wedges and removable and adjustable bail or pad.Tension clamp with hook are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Aluminium Alloy Anchoring Clamp For Aerial Bundled Cables 0

Material of anchor clamp with hook

The clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.


Models PA-1000-* PA-1500-* PA-2000-*
Cable Range (mm²) 25-35 50-70 70-95
Cable Diameter(mm) 8~11 11~14 14~18
Core No. 1 1 1
MBL (daN) 1000 1500 2000
